Our Niobium Product Categories

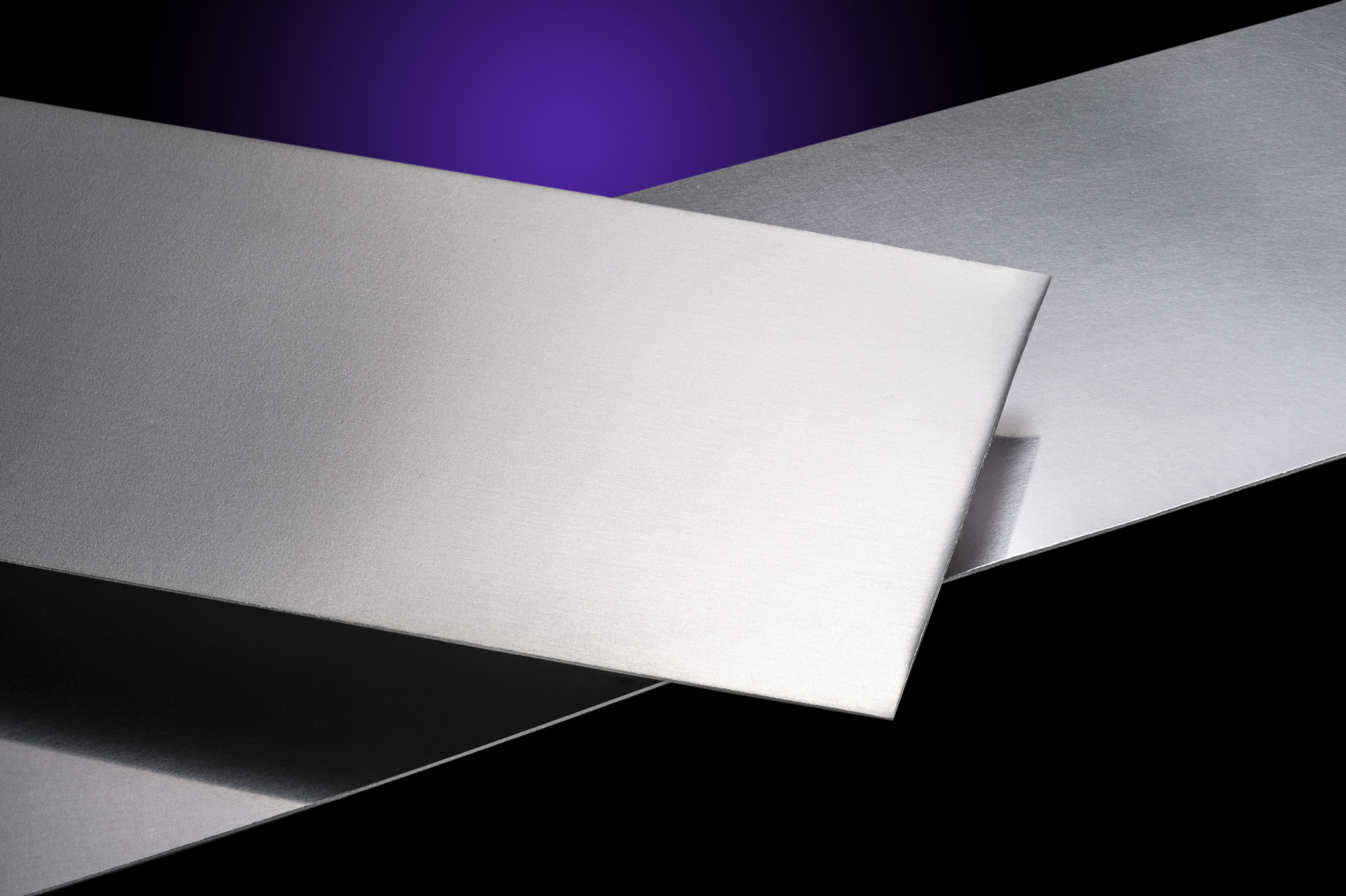

Niobium Sheet

Sheet

At Admat, we offer niobium sheet options in various sizes and thicknesses to meet your specific requirements. Our niobium sheets are renowned for their corrosion resistance, high melting point, and excellent formability. Whether you need niobium sheets for chemical processing, stamping, drawing, superconducting or sputtering, we have the perfect solution for you.

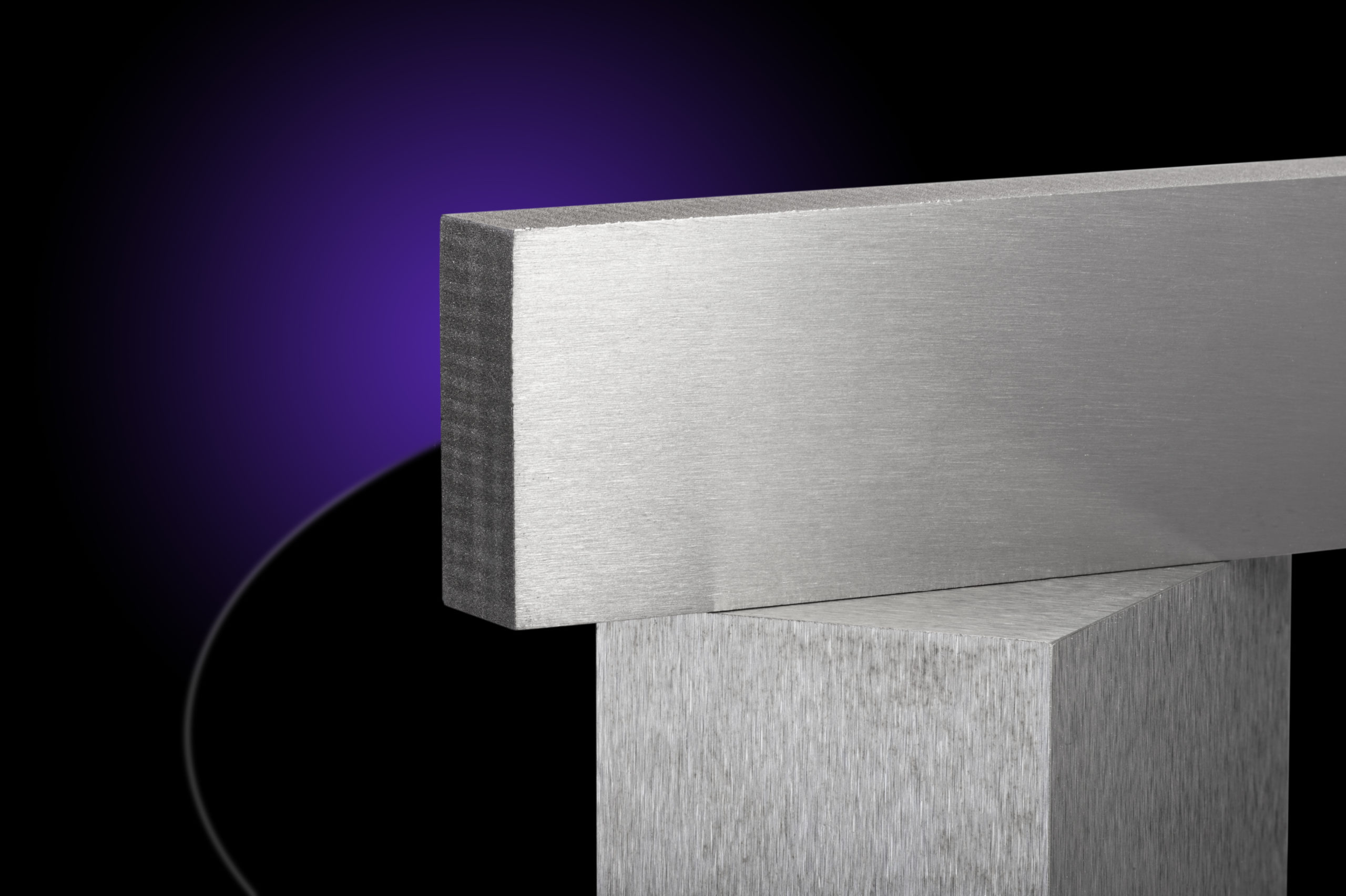

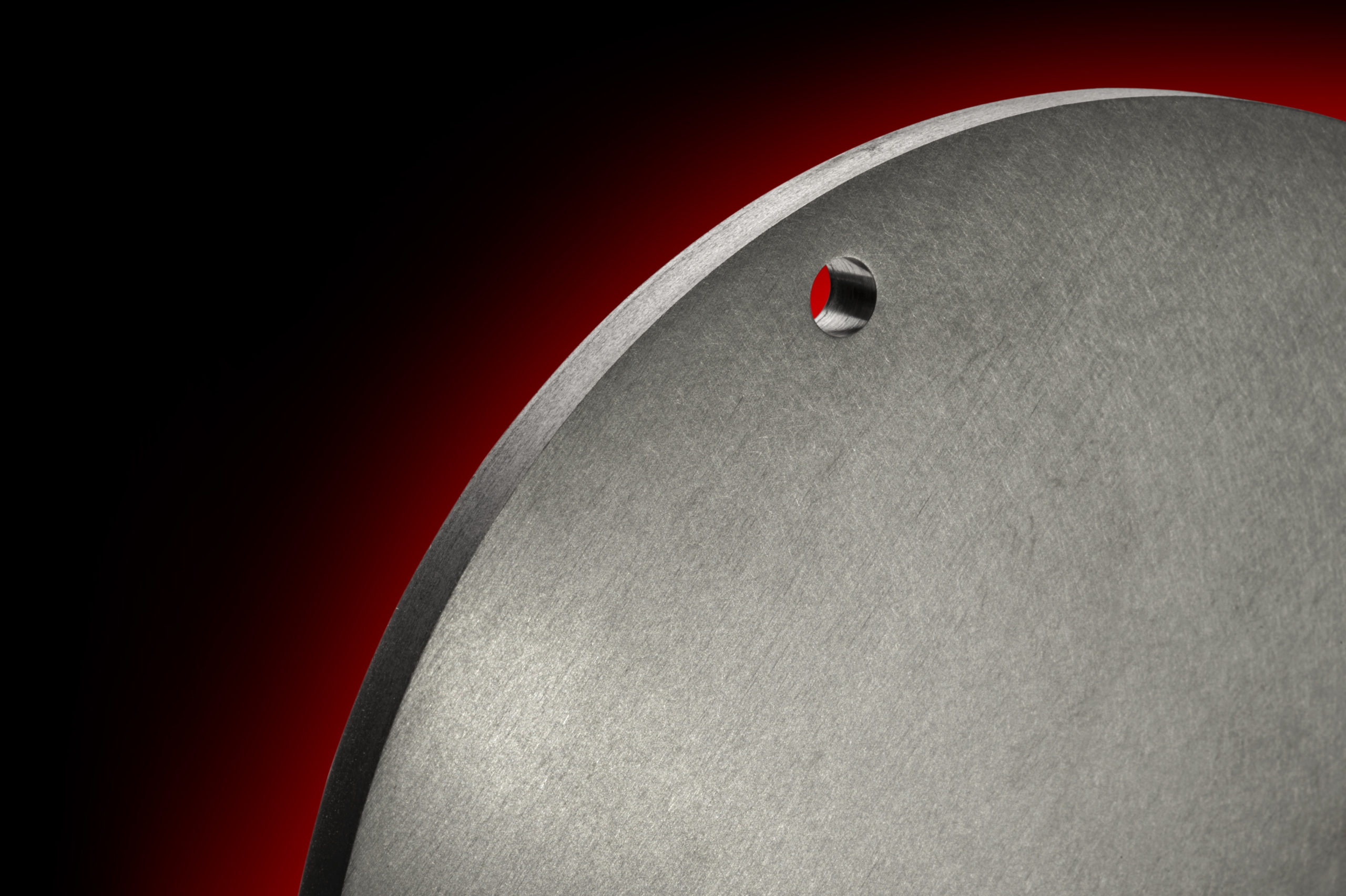

Niobium Plate

Plate

Admat is committed to providing the highest quality niobium plate available. We offer a wide range of thicknesses and sizes, as well as purities and microstructures. Speak to one of Admat’s experts to help determine the best niobium for your application.

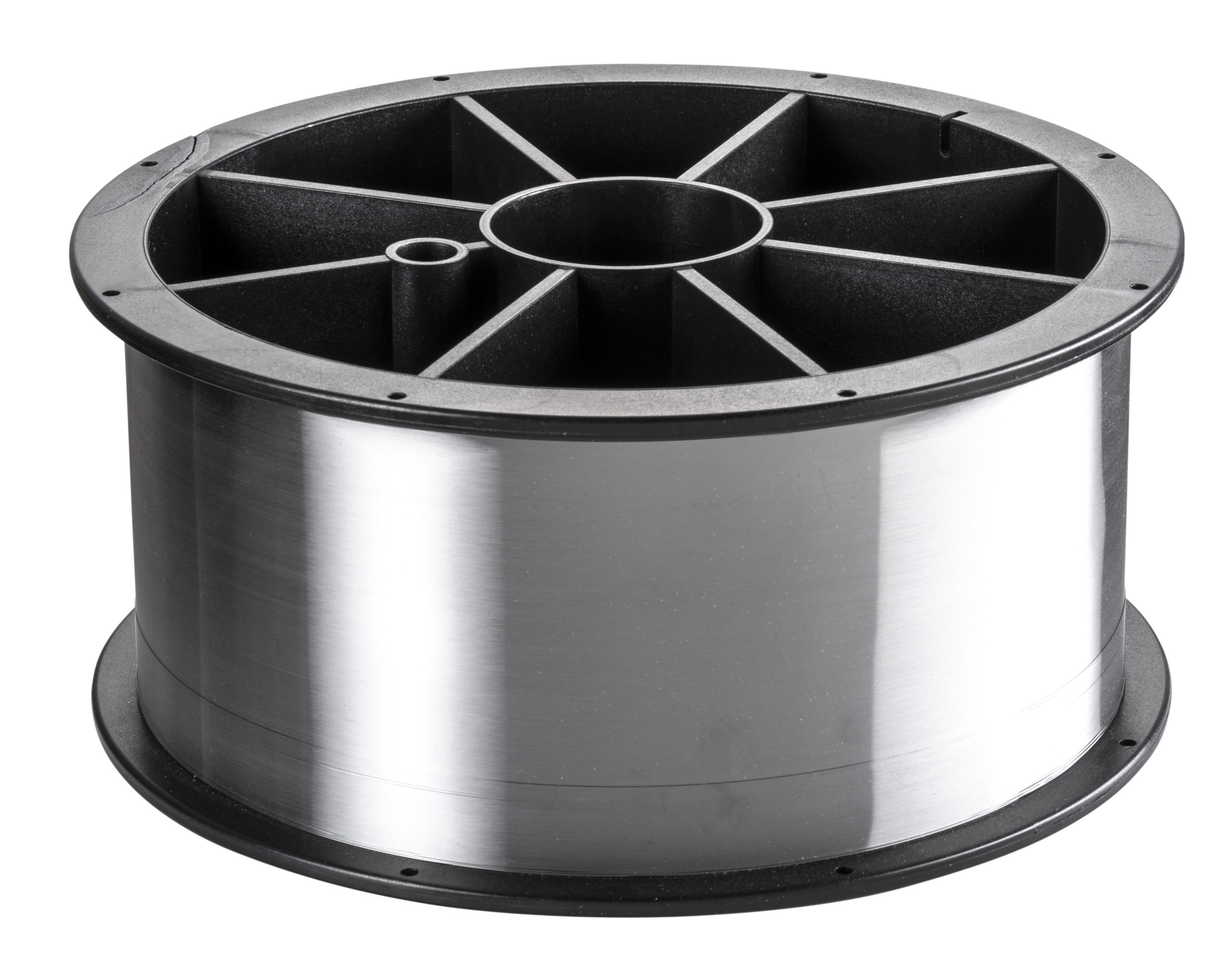

Niobium Rod Bar and Wire

Rod, Bar & Wire

Discover our selection of niobium rods, bars, and wire that exhibit exceptional mechanical properties and electrical conductivity. These products are widely used in the aerospace, electronics, jewelry and medical industries.
Niobium tube

Tube

Our niobium tubes are meticulously manufactured to precise tolerances, making them suitable for applications requiring excellent ductility and thermal conductivity. From seamless tantalum tubes to custom sizes, we have the right option to meet your needs.

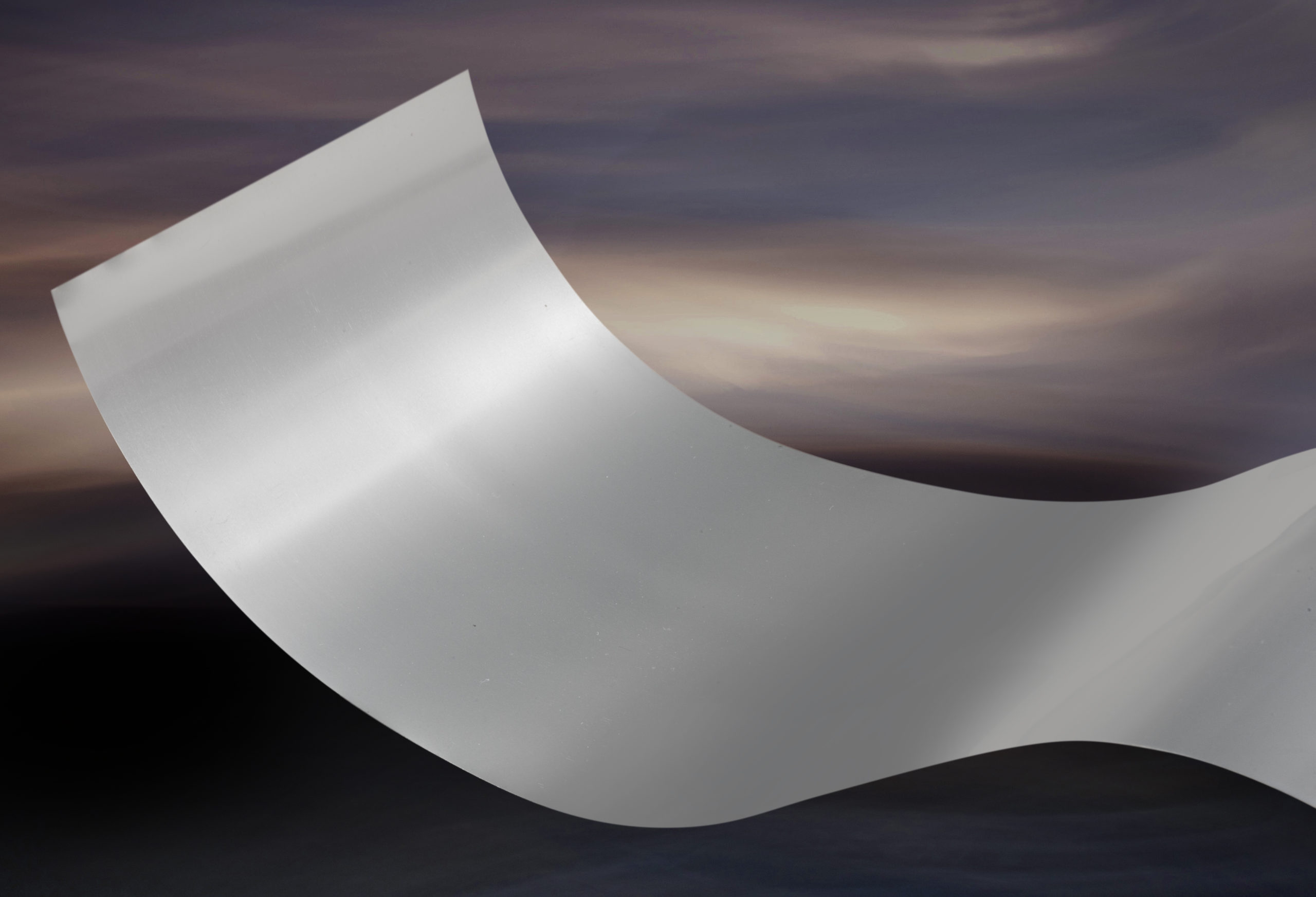

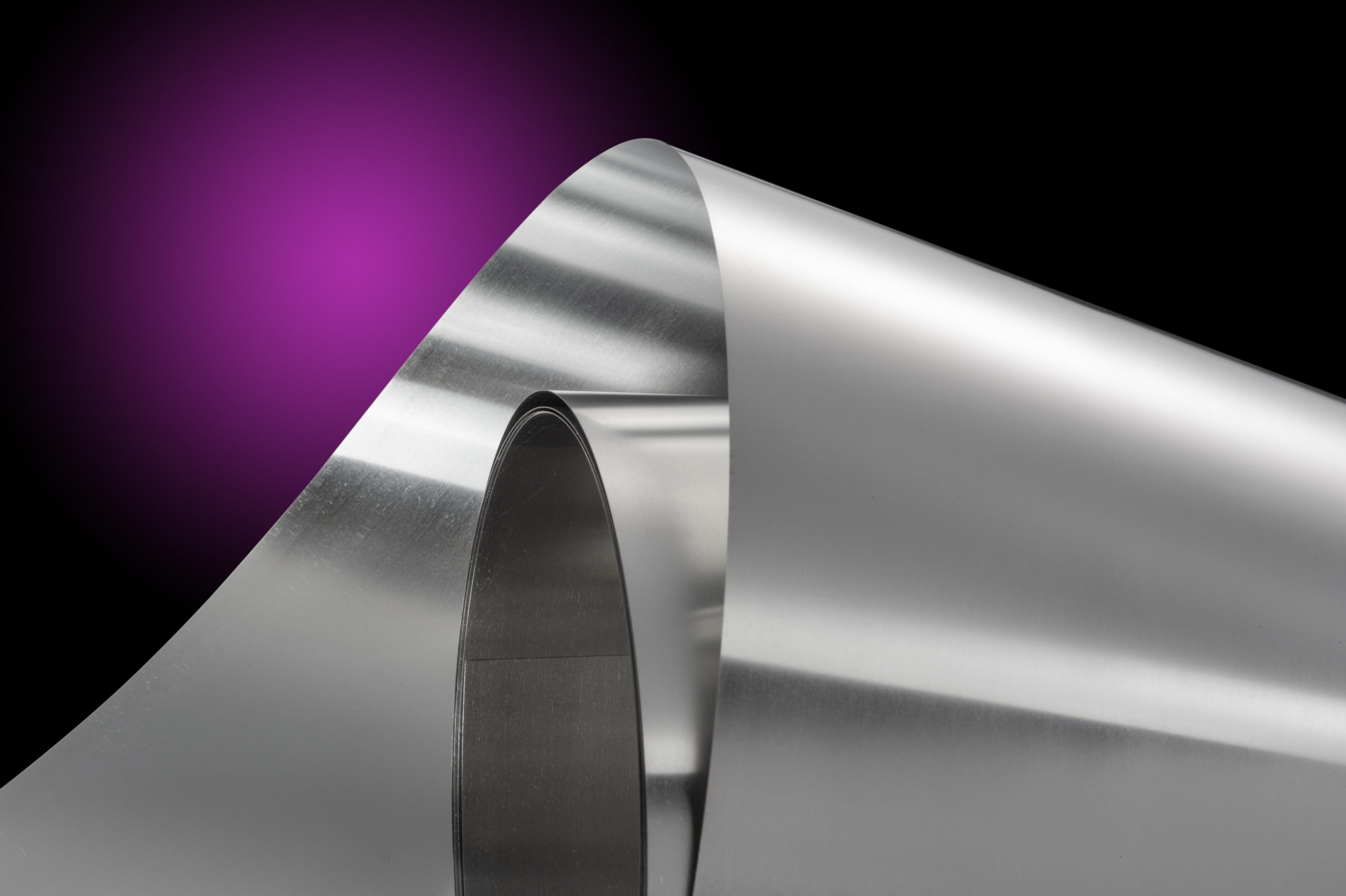

Niobium Strip

Strip

Explore our niobium strips that are ideal for applications demanding high surface area and superior performance. Niobium strips are found utility in the chemical, energy, electronic, and nuclear industries, and we offer various grades and dimensions to match your specifications.
Niobium Foil

Foil

Our niobium foil exhibits outstanding flexibility and is available in thin gauges, making it a preferred choice for stampers supplying to such markets as energy. electronic components, capacitors, and medical devices.
Niobium C103

C-103

This unique blend of metals creates a high strength, lightweight material well suited for the extremely high temperatures seen by rocket nozzles and the low temperatures of space. Additionally, this alloy has excellent formability, machinability and is easily weldable using Tungsten Inert Gas (TIG) welding methods.

Oxide

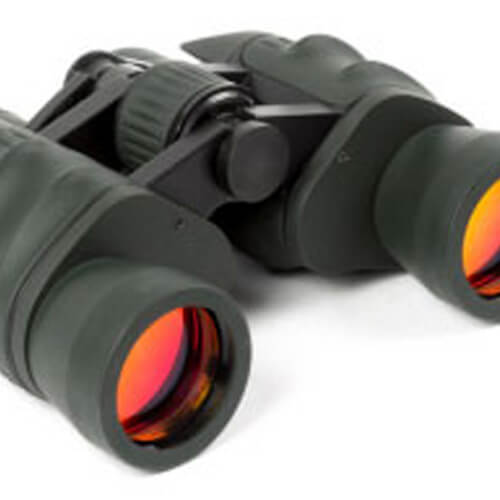

Admat’s niobium oxide is used in the production of high quality optical lenses, barium titanate ceramic capacitors and the growing of lithium niobite single crystals.

Niobium is a grey, crystalline metallic element with high temperature resistance and other desirable properties for manufacturers. It is most commonly used in the creation of numerous metal alloys. Small amounts of niobium (as little as 0.1%) can significantly improve a metal’s performance characteristics. Admat Inc. offers pure, alloy, and oxide niobium products in a variety of forms, including sheets, plates, rods, wires, tubes, strips, foils, and oxides.

Benefits of Niobium

Niobium is renowned for its excellent resistance to corrosion and oxidation. When exposed to air and moisture, a tenacious niobium oxide layer forms. This layer acts as a protective barrier, blocking the intrusion of additional air and moisture and, as a result, preventing the occurrence of further corrosion.

Niobium is one of five refractory metals; this means it is highly resistant to extreme heat and wear. Its 4491°F (2477°C) melting point makes this metal and its alloys ideal for high pressure and high-temperature applications. Despite niobium’s relatively high melting point, its density is the lowest of all refractory metals, which can make it appealing to the aircraft and jet engine industries.

Niobium is also frequently used to make jewelry due to its malleability, hardness, corrosion resistance, and hypoallergenic properties. It can also be easily anodized to create a variety of attractive iridescent colors.

Other useful characteristics of niobium include its potent alloying and superconducting properties, which are essential in several applications.

Applications of Niobium

Some of the most common uses of this element include:

  • Steel Production – Niobium is commonly used in the microalloying of HSLA steels for the automotive and petrochemical industries. As little as 0.1% of this metal can considerably enhance the strength and stability of structural steel. Niobium-steel alloys are frequently used in automotive sheet steel and oil and gas pipelines.
  • Superalloys – Superalloys are high-performance alloys that exhibit exceptional mechanical strength, thermal creep resistance, surface stability, and corrosion resistance. As much as 6.5% of niobium may be used in nickel, cobalt, and iron-based superalloys. These alloys are especially useful in the aerospace industry for the production of jet engine components, which can experience temperatures exceeding 1832°F (1000°C).

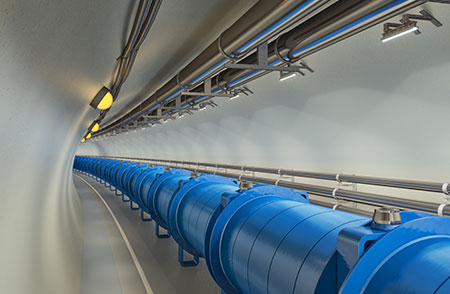

  • Superconducting Magnets – When cooled to below niobium’s transition temperature, its resistance becomes negligible. Specific niobium alloys are used as type II superconductor wires for superconducting magnets. These magnets are critical components of magnetic resonance imaging equipment that is used in the medical industry.

Niobium Properties

Here are some of niobium’s essential properties:

  • Symbol – Nb
  • Number – 41
  • Density – 8.57 g/cm3
  • Atomic Weight – 92.906 g/mol
  • Crystal Structure – Body Centered Cubic
  • Melting Point – 2750 K, 2477°C, 4491°F
  • Boiling Point – 5017 K, 4744°C, 8571°F
  • Electrical Resistivity – (0 °C) 152 nΩ·m
  • Thermal Conductivity – (300 K) 53.7 W·m−1K−1
  • Thermal Expansion – 7.3 µm/(m·K)

PHYSICAL PROPERTIES

PHASE — Solid
STD ATOMIC WEIGHT — Solid
STD ATOMIC WEIGHT — 92.90638(2) g-mol-1
MELTING TEMPERATURE — 2750 K, 2477° C, 4491° F
BOILING POINT — 5017 K, 4744° C, 8571° F
CRYSTAL STRUCTURE — Body Centered Cubic
ELECTRICAL RESISTIVITY — (0 °C) 152 nΩ·m
THERMAL CONDUCTIVITY — (300 K) 53.7 W·m−1·K−1
THERMAL EXPANSION — 7.3 µm/(m·K)

GENERAL PROPERTIES

SYMBOL — Nb
NUMBER — 41
ELEMENT CATEGORY: — Transition Metals

Niobium Products for Your Project

If you are interested in learning more about Admat’s niobium products and how they can be used in your application, contact our technical team directly or request a quote today.
